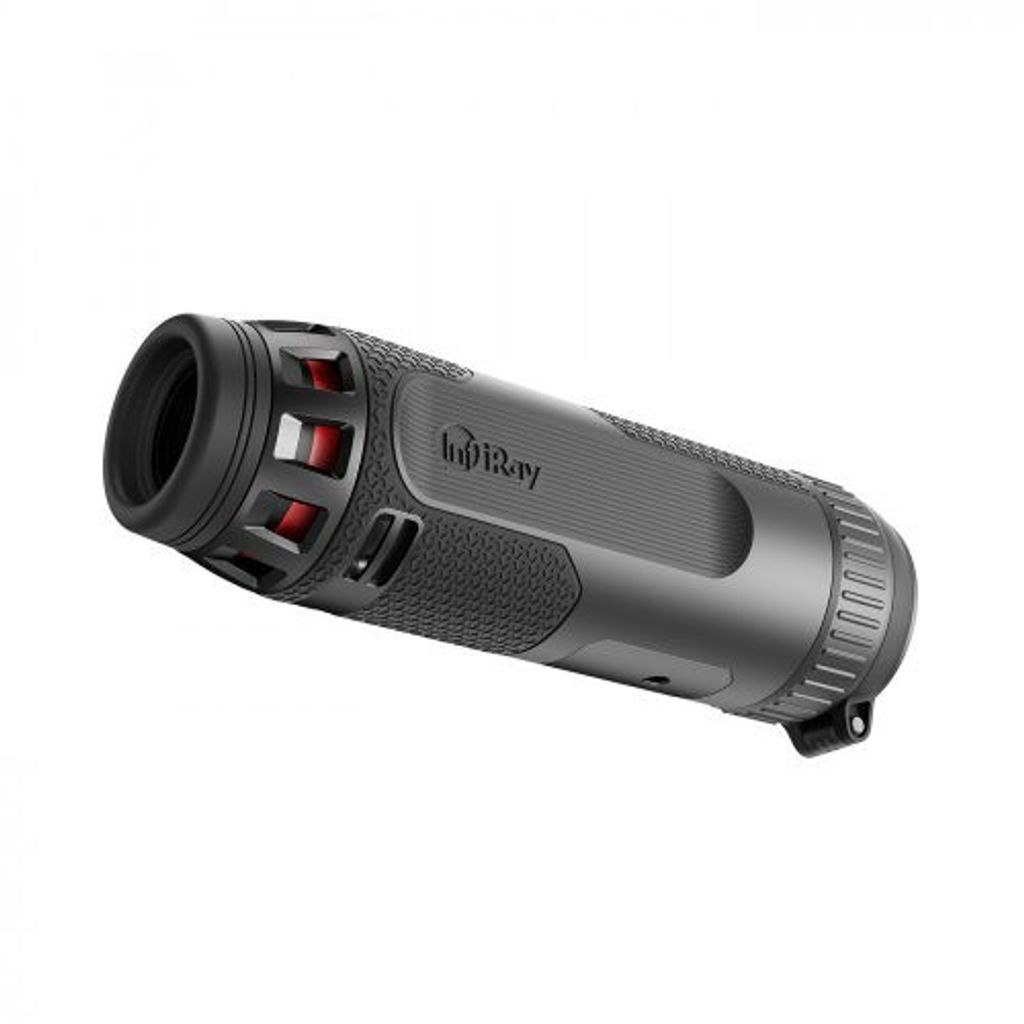

Beskrivning av InfiRay Eye III, E3 Max
Model | E3max | |
Detector Parameters | Resolution | 384 x 288 |
Pixel Size | 12um | |
NETD | <25mk | |
Frame Rate | 50Hz | |
Optical Parameters | Focal Length of Objective Lens | 35mm |
FOV | 7.5° x 5.7° | |
Base Magnification | 5 | |
Eye Relief | 20mm | |
Eye Relief Diameter | 5.5mm | |
Diopter Adjustment | ±5D | |
Detection Range | 1800 | |
Other Parameters | Display Screen Type | OLED |
Standby Duration | 8h | |
Digital Compass | Supported | |
WIFI | Supported | |
MIC | Supported | |
Product Interconnection | Supported | |
Interface | Type C & magnetic interface | |
Storage | 32G | |
Ingress Protection Rating | IP67 | |
Weight | 480g | |
Dimension | Φ54 x 180mm |
